Handheld Oscilloscope Commissioning Checklist
Prove basic controls, probe factor, reference and known-signal behaviour before vehicle diagnosis.
Short answer: Commission a new handheld scope away from a customer vehicle. Confirm the exact model and accessories, inspect the probe, set attenuation on both probe and scope, check zero/reference behaviour and capture a safe known signal. Only then plan a vehicle test within documented limits.
This is a working guide for setup acceptance, not a rewritten product card. Begin with the current Probeo BSIDE 10 MHz handheld oscilloscope product page, then keep the exact manual, label or service information beside the task so a live specification is never mistaken for proof of the final result.
The decision this page helps you make
Prove basic controls, probe factor, reference and known-signal behaviour before vehicle diagnosis. That means defining a pass condition before buying, fitting or using anything. If the necessary identity, safety limit or acceptance evidence is missing, the honest outcome is to pause rather than turn uncertainty into a confident claim.

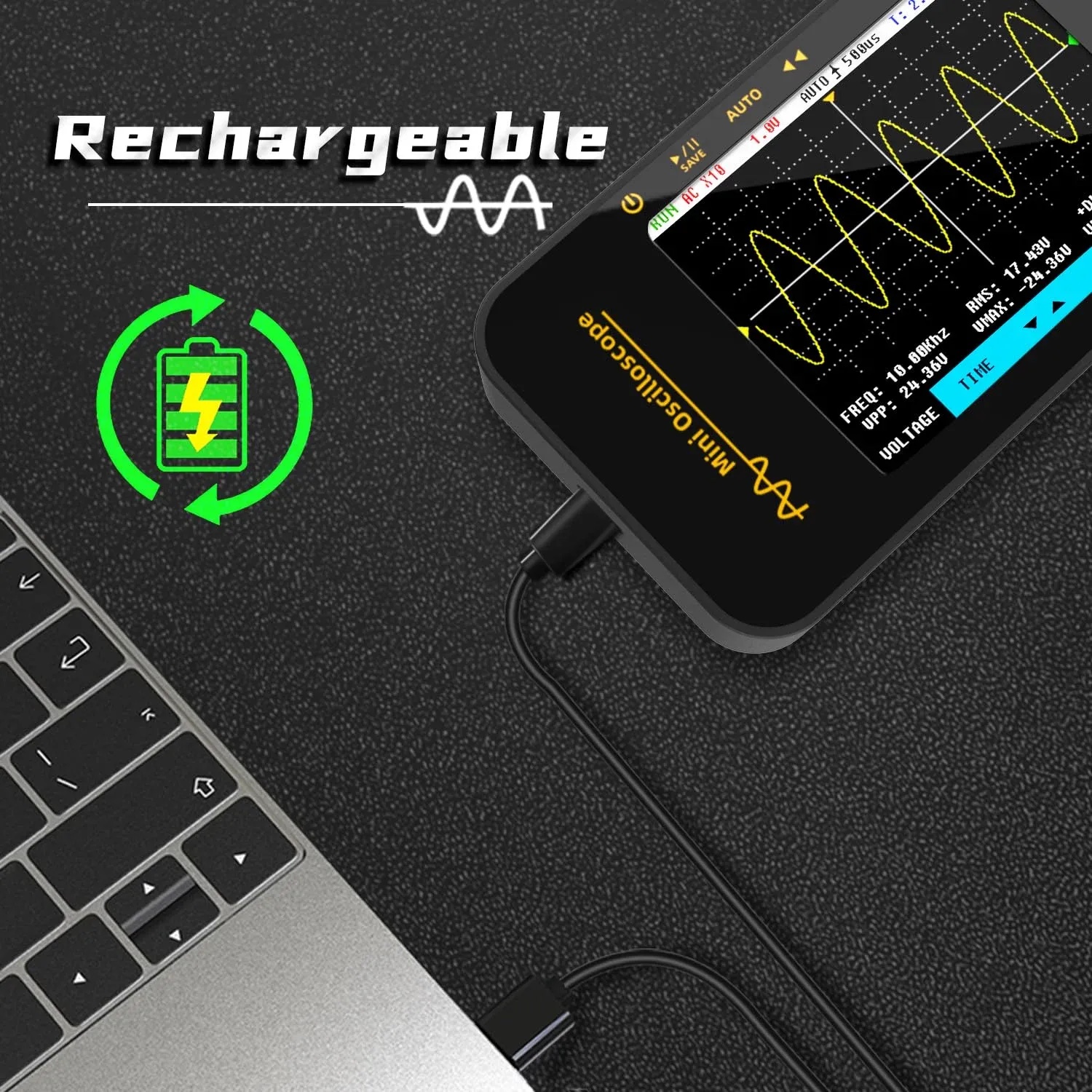

The product page currently says: The seller lists 10 MHz bandwidth, 48 MSa/s sampling, 1 Mohm input, a 3.2-inch 320x240 display and 1,500 mAh USB-C battery. The product is a BSIDE handheld described as an alternative to Hantek; that wording is not a claim of Hantek manufacture or equivalence. These are useful purchasing inputs, but they remain seller-provided specifications until the exact delivered item and current documentation agree.
The non-negotiable boundary is equally important: Oscilloscope inputs and grounds can create dangerous shorts or exceed the instrument rating. Verify the exact manual, probe attenuation, maximum input, reference-ground arrangement and circuit category before connection. Automotive suitability is application-specific, not proven by a broad product label.
A practical step-by-step workflow
- Step 1: Record model, serial, firmware and supplied accessories.
- Step 2: Read the current manual and safety limits.
- Step 3: Inspect enclosure, connector, probe and charging lead.
- Step 4: Charge using the specified method away from a live measurement.
- Step 5: Match probe attenuation in hardware and software.
- Step 6: Use a safe known signal to check scale, timebase, trigger and save/export.
- Step 7: Create a labelled baseline capture and only then move to a vehicle plan.
Carry out the checks in order. For this specific decision, record the exact identity, the starting condition, the setting or method used and why the outcome was accepted or rejected. That turns a later change into something that can be diagnosed instead of an anecdote.
Evidence table
| Commissioning item | Pass evidence | Reject/escalate |
|---|---|---|
| Identity | BSIDE model and manual agree | Listing calls it only a Hantek alternative |
| Probe factor | Known signal amplitude agrees | Tenfold amplitude error |
| Trigger/timebase | Stable repeatable capture | Rolling/aliased display not understood |
| Input/safety | Limits and reference documented | No clear maximum or grounding information |
Use the table as a stop/go record. When the current manual or service information gives a specific limit, that exact source takes priority over this general guide.
What the listing can and cannot prove
For Probeo BSIDE 10 MHz handheld oscilloscope, the listing can establish the current offer and the seller’s stated specification. It cannot independently establish the result described in this article. Ratings, discount badges and scarcity messages are not technical evidence. Where two statements conflict, preserve both, ask for written clarification and postpone irreversible work.
Common failure modes
- Connecting to a vehicle before reading the manual.
- Confusing the “Hantek alternative” phrase with manufacturer identity.
- Charging from an unknown source during measurement.
- Leaving probe and software attenuation mismatched.
- Using mains circuits as a first test.
- Trusting a pretty waveform without a known input and saved settings.
A documented stop decision protects the item and the diagnostic trail. It also makes a supplier question or return easier because the mismatch was recorded before damage or modification.
How this page fits the wider topic cluster
Use the product page for the current offer. Continue to automotive diagnostic oscilloscope uk guide, handheld oscilloscope uk buying guide, automotive oscilloscope probe safety grounding, crank cam sensor waveform test workflow only when that adjacent question becomes relevant. Together these pages cover buying, setup, evidence, maintenance and safety without repeating one broad buyer’s guide under several titles.
Frequently asked questions
What is the first check for this task?
Record model, serial, firmware and supplied accessories. This first check matters because the rest of the workflow assumes the correct item, information and starting condition.
What result should be written down?
Record the result of “Create a labelled baseline capture and only then move to a vehicle plan.” together with the exact item or batch, relevant settings and any photograph or measurement that another person would need to repeat the decision.
Which product claim still needs verification?
The seller lists 10 MHz bandwidth, 48 MSa/s sampling, 1 Mohm input, a 3.2-inch 320x240 display and 1,500 mAh USB-C battery. The product is a BSIDE handheld described as an alternative to Hantek; that wording is not a claim of Hantek manufacture or equivalence. Treat each figure or compatibility statement as seller-provided until the delivered label and current documentation agree.
What is an immediate stop signal?
Connecting to a vehicle before reading the manual. is one avoidable failure. Also stop whenever oscilloscope inputs and grounds can create dangerous shorts or exceed the instrument rating. Verify the exact manual, probe attenuation, maximum input, reference-ground arrangement and circuit category before connection. Automotive suitability is application-specific, not proven by a broad product label.
Sources and scope
The product specifications in this article are attributed to the live seller page. Decision and safety boundaries were checked against these primary or authoritative sources:
These sources define principles within their stated scope. They do not endorse Probeo BSIDE 10 MHz handheld oscilloscope, and no cited organisation is represented as having tested it.
Bottom line
Commission a new handheld scope away from a customer vehicle. Confirm the exact model and accessories, inspect the probe, set attenuation on both probe and scope, check zero/reference behaviour and capture a safe known signal. Only then plan a vehicle test within documented limits. Read the exact instructions, decide what evidence would count as success, and keep a written stop rule. That is the difference between a useful topic-cluster article and a confident-looking product paraphrase.
