Automotive Oscilloscope Probe Safety and Grounding
Define the reference, voltage range and probe arrangement before making a connection.
Short answer: Before probing, define what the scope reference is electrically connected to and whether that connection can short the circuit. Confirm input and probe limits, use the appropriate attenuation or differential/isolation method, and keep test leads away from belts, fans, exhaust and high-voltage ignition systems.

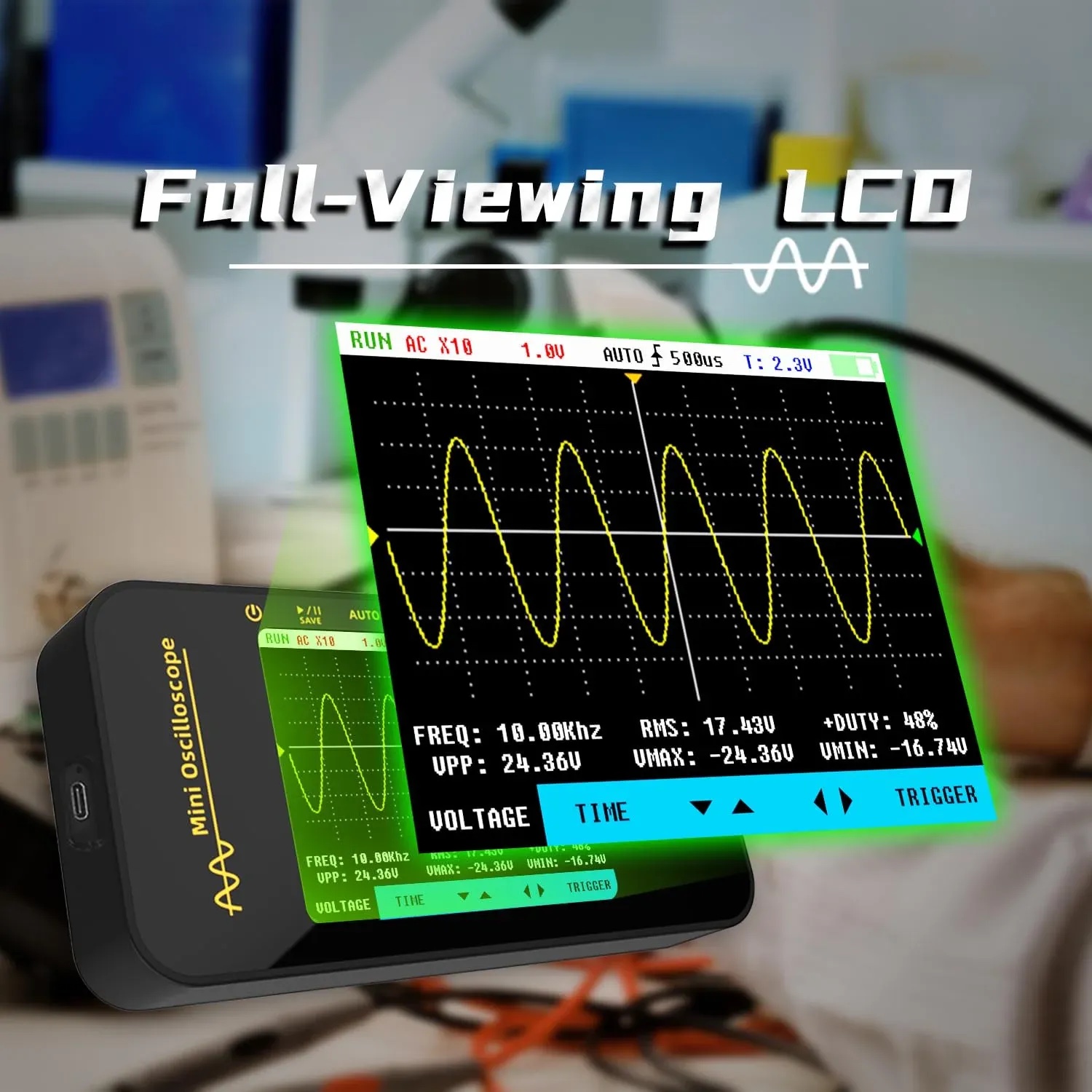

This is a working guide for safety, not a rewritten product card. Begin with the current Probeo BSIDE 10 MHz handheld oscilloscope product page, then keep the exact manual, label or service information beside the task so a live specification is never mistaken for proof of the final result.
The decision this page helps you make
Define the reference, voltage range and probe arrangement before making a connection. That means defining a pass condition before buying, fitting or using anything. If the necessary identity, safety limit or acceptance evidence is missing, the honest outcome is to pause rather than turn uncertainty into a confident claim.
The product page currently says: The seller lists 10 MHz bandwidth, 48 MSa/s sampling, 1 Mohm input, a 3.2-inch 320x240 display and 1,500 mAh USB-C battery. The product is a BSIDE handheld described as an alternative to Hantek; that wording is not a claim of Hantek manufacture or equivalence. These are useful purchasing inputs, but they remain seller-provided specifications until the exact delivered item and current documentation agree.
The non-negotiable boundary is equally important: Oscilloscope inputs and grounds can create dangerous shorts or exceed the instrument rating. Verify the exact manual, probe attenuation, maximum input, reference-ground arrangement and circuit category before connection. Automotive suitability is application-specific, not proven by a broad product label.
A practical step-by-step workflow
- Step 1: Read the exact scope and probe safety information.
- Step 2: Identify instrument reference/ground arrangement.
- Step 3: Identify circuit voltage, transient and category exposure.
- Step 4: Select probe type and attenuation before connection.
- Step 5: Connect reference only to a verified safe point.
- Step 6: Route leads away from moving and hot components.
- Step 7: Stop if the circuit reference or maximum input is uncertain.
Carry out the checks in order. For this specific decision, record the exact identity, the starting condition, the setting or method used and why the outcome was accepted or rejected. That turns a later change into something that can be diagnosed instead of an anecdote.
Evidence table
| Risk | Control | Why it matters |
|---|---|---|
| Ground short | Understand reference before clip connection | A grounded clip can directly bridge circuit nodes |
| Overvoltage | Check probe and input limits including transients | Nominal vehicle voltage does not show every spike |
| Movement/heat | Secure and route leads | Fans, belts and exhaust can damage leads or operator |
| Ignition/high energy | Use specified specialist method | Ordinary probes may be unsuitable |
Use the table as a stop/go record. When the current manual or service information gives a specific limit, that exact source takes priority over this general guide.
What the listing can and cannot prove
For Probeo BSIDE 10 MHz handheld oscilloscope, the listing can establish the current offer and the seller’s stated specification. It cannot independently establish the result described in this article. Ratings, discount badges and scarcity messages are not technical evidence. Where two statements conflict, preserve both, ask for written clarification and postpone irreversible work.
Common failure modes
- Clipping ground to an unknown point.
- Assuming battery operation means fully isolated inputs.
- Using a damaged probe.
- Changing attenuation in software but not on the probe.
- Leaving leads loose near a running engine.
- Probing ignition or high-voltage systems without the specified accessory and competence.
A documented stop decision protects the item and the diagnostic trail. It also makes a supplier question or return easier because the mismatch was recorded before damage or modification.
How this page fits the wider topic cluster
Use the product page for the current offer. Continue to automotive diagnostic oscilloscope uk guide, handheld oscilloscope uk buying guide, oscilloscope vs multimeter automotive diagnostics, oscilloscope bandwidth sample rate automotive only when that adjacent question becomes relevant. Together these pages cover buying, setup, evidence, maintenance and safety without repeating one broad buyer’s guide under several titles.
Frequently asked questions
What is the first check for this task?
Read the exact scope and probe safety information. This first check matters because the rest of the workflow assumes the correct item, information and starting condition.
What result should be written down?
Record the result of “Stop if the circuit reference or maximum input is uncertain.” together with the exact item or batch, relevant settings and any photograph or measurement that another person would need to repeat the decision.
Which product claim still needs verification?
The seller lists 10 MHz bandwidth, 48 MSa/s sampling, 1 Mohm input, a 3.2-inch 320x240 display and 1,500 mAh USB-C battery. The product is a BSIDE handheld described as an alternative to Hantek; that wording is not a claim of Hantek manufacture or equivalence. Treat each figure or compatibility statement as seller-provided until the delivered label and current documentation agree.
What is an immediate stop signal?
Clipping ground to an unknown point. is one avoidable failure. Also stop whenever oscilloscope inputs and grounds can create dangerous shorts or exceed the instrument rating. Verify the exact manual, probe attenuation, maximum input, reference-ground arrangement and circuit category before connection. Automotive suitability is application-specific, not proven by a broad product label.
Sources and scope
The product specifications in this article are attributed to the live seller page. Decision and safety boundaries were checked against these primary or authoritative sources:
These sources define principles within their stated scope. They do not endorse Probeo BSIDE 10 MHz handheld oscilloscope, and no cited organisation is represented as having tested it.
Bottom line
Before probing, define what the scope reference is electrically connected to and whether that connection can short the circuit. Confirm input and probe limits, use the appropriate attenuation or differential/isolation method, and keep test leads away from belts, fans, exhaust and high-voltage ignition systems. Read the exact instructions, decide what evidence would count as success, and keep a written stop rule. That is the difference between a useful topic-cluster article and a confident-looking product paraphrase.
