Oscilloscope vs Multimeter for Automotive Diagnostics
Choose between a stable numeric reading and a time-based waveform before reaching for either tool.
Short answer: Use a multimeter when the important answer is a stable value such as supply voltage or resistance under the correct conditions. Use an oscilloscope when timing, shape, dropouts, noise or the relationship between changing signals matters. A scope does not replace a safe test plan, and a handheld 10 MHz specification does not make every automotive capture appropriate.
This is a working guide for comparison, not a rewritten product card. Begin with the current Probeo BSIDE 10 MHz handheld oscilloscope product page, then keep the exact manual, label or service information beside the task so a live specification is never mistaken for proof of the final result.
The decision this page helps you make
Choose between a stable numeric reading and a time-based waveform before reaching for either tool. That means defining a pass condition before buying, fitting or using anything. If the necessary identity, safety limit or acceptance evidence is missing, the honest outcome is to pause rather than turn uncertainty into a confident claim.

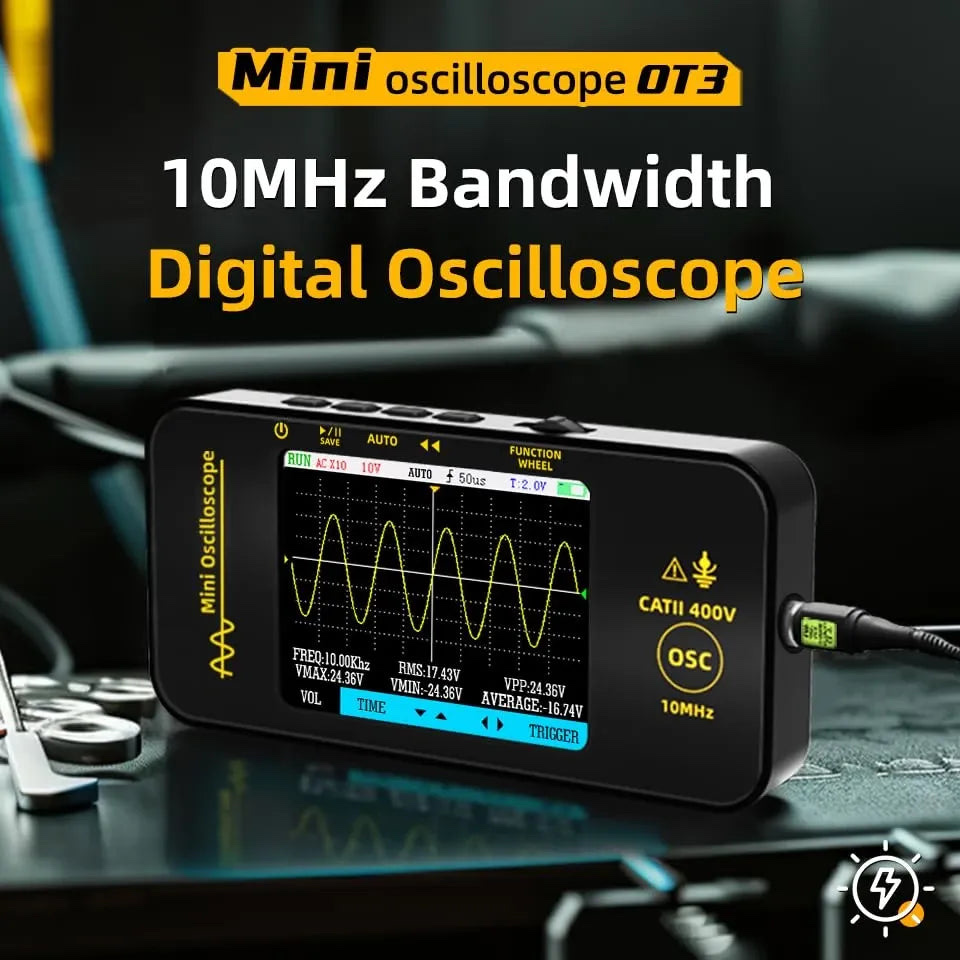

The product page currently says: The seller lists 10 MHz bandwidth, 48 MSa/s sampling, 1 Mohm input, a 3.2-inch 320x240 display and 1,500 mAh USB-C battery. The product is a BSIDE handheld described as an alternative to Hantek; that wording is not a claim of Hantek manufacture or equivalence. These are useful purchasing inputs, but they remain seller-provided specifications until the exact delivered item and current documentation agree.
The non-negotiable boundary is equally important: Oscilloscope inputs and grounds can create dangerous shorts or exceed the instrument rating. Verify the exact manual, probe attenuation, maximum input, reference-ground arrangement and circuit category before connection. Automotive suitability is application-specific, not proven by a broad product label.
A practical step-by-step workflow
- Step 1: Write the diagnostic question before choosing a tool.
- Step 2: Use service information to identify expected circuit and signal type.
- Step 3: Choose a meter for stable numeric checks and a scope for time variation.
- Step 4: Confirm voltage range, reference and probe arrangement.
- Step 5: Capture a known-good supply/reference where useful.
- Step 6: Save scale, timebase and connection notes with the result.
- Step 7: Use the measurement to test a hypothesis, not to decorate a parts guess.
Carry out the checks in order. For this specific decision, record the exact identity, the starting condition, the setting or method used and why the outcome was accepted or rejected. That turns a later change into something that can be diagnosed instead of an anecdote.
Evidence table
| Need | Multimeter | Oscilloscope |
|---|---|---|
| Battery supply | Good for stable voltage | Useful for transient drop or ripple detail |
| Resistance | Appropriate only on safely de-energised circuit | Usually not the first tool |
| Intermittent sensor dropout | May average it away | Can reveal timing and shape if configured correctly |
| Relative timing | Cannot display phase relationship | Requires suitable channels, references and method |
Use the table as a stop/go record. When the current manual or service information gives a specific limit, that exact source takes priority over this general guide.
What the listing can and cannot prove
For Probeo BSIDE 10 MHz handheld oscilloscope, the listing can establish the current offer and the seller’s stated specification. It cannot independently establish the result described in this article. Ratings, discount badges and scarcity messages are not technical evidence. Where two statements conflict, preserve both, ask for written clarification and postpone irreversible work.
Common failure modes
- Using a scope because it looks more advanced.
- Calling an averaged meter reading proof that no dropout exists.
- Connecting a ground without understanding reference.
- Comparing captures with different scale and timebase.
- Diagnosing from an internet waveform without matching vehicle conditions.
- Claiming a 10 MHz handheld replaces a full automotive scope system.
A documented stop decision protects the item and the diagnostic trail. It also makes a supplier question or return easier because the mismatch was recorded before damage or modification.
How this page fits the wider topic cluster
Use the product page for the current offer. Continue to automotive diagnostic oscilloscope uk guide, handheld oscilloscope uk buying guide only when that adjacent question becomes relevant. Together these pages cover buying, setup, evidence, maintenance and safety without repeating one broad buyer’s guide under several titles.
Frequently asked questions
What is the first check for this task?
Write the diagnostic question before choosing a tool. This first check matters because the rest of the workflow assumes the correct item, information and starting condition.
What result should be written down?
Record the result of “Use the measurement to test a hypothesis, not to decorate a parts guess.” together with the exact item or batch, relevant settings and any photograph or measurement that another person would need to repeat the decision.
Which product claim still needs verification?
The seller lists 10 MHz bandwidth, 48 MSa/s sampling, 1 Mohm input, a 3.2-inch 320x240 display and 1,500 mAh USB-C battery. The product is a BSIDE handheld described as an alternative to Hantek; that wording is not a claim of Hantek manufacture or equivalence. Treat each figure or compatibility statement as seller-provided until the delivered label and current documentation agree.
What is an immediate stop signal?
Using a scope because it looks more advanced. is one avoidable failure. Also stop whenever oscilloscope inputs and grounds can create dangerous shorts or exceed the instrument rating. Verify the exact manual, probe attenuation, maximum input, reference-ground arrangement and circuit category before connection. Automotive suitability is application-specific, not proven by a broad product label.
Sources and scope
The product specifications in this article are attributed to the live seller page. Decision and safety boundaries were checked against these primary or authoritative sources:
These sources define principles within their stated scope. They do not endorse Probeo BSIDE 10 MHz handheld oscilloscope, and no cited organisation is represented as having tested it.
Bottom line
Use a multimeter when the important answer is a stable value such as supply voltage or resistance under the correct conditions. Use an oscilloscope when timing, shape, dropouts, noise or the relationship between changing signals matters. A scope does not replace a safe test plan, and a handheld 10 MHz specification does not make every automotive capture appropriate. Read the exact instructions, decide what evidence would count as success, and keep a written stop rule. That is the difference between a useful topic-cluster article and a confident-looking product paraphrase.
